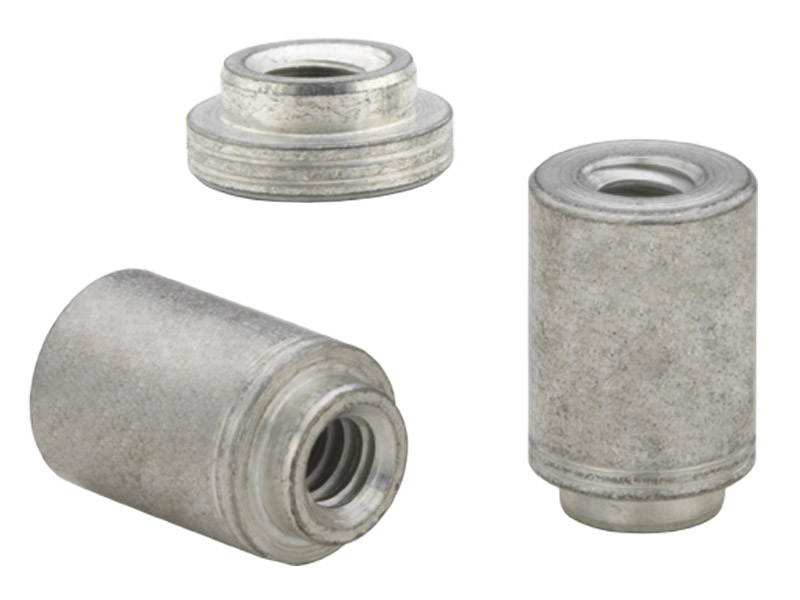

SMTSO-3.6-2ET, ReelFast® Surface Mount Nuts and Spacers/Standoffs -
Type SMTSO - Metric
| Specifications Datasheets Animations | ||
|---|---|---|
| Model Number | SMTSO-3.6-2ET |
|
| Description | Type SMTSO - ReelFast® surface mount nuts and standoffs are available threaded and unthreaded. Packaged on 330 mm recyclable reels. Tape width is 24 mm. Supplied with polyimide patch for vacuum pick up. Reels conform to EIA-481. |
|
| Company Name | Zygology | |
| Product Name | ReelFast® Surface Mount Nuts and Spacers/Standoffs - Type SMTSO - Metric |
|

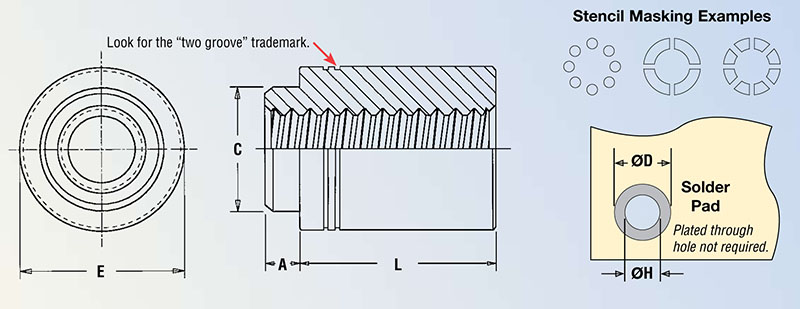

| A mm | 1.53 | |
| CAD Supplier | PennEngineering® (PEM®) | |
| D mm | 7.77 | |
| E mm | 7.14 | |
| Fastener Material | Carbon Steel | |
| For Use in Sheet Hardness | P.C. Board | |
| Hole Size in Sheet mm 2 | 5.41 | |
| L mm | 2 | |
| Length Code | 2 | |
| Min. Sheet Thickness mm | 1.53 | |
| Parts per Reel | 1500 | |
| Pitch mm | 12 | |
| Standard Finish | Electro-Plated Tin, ASTM B545, Class A with Clear Preservative Coating, Annealed | |
| Thread Specification | Internal, ASME B1.13M, 6H | |
| Thru Hole Code | 3.6 | |
| Thru Hole mm | 3.6 | |
| CAD URL 3D | https://catalogue.zygology.com/cadviewer/ThreeDim?sn=smtso-3-6-2et | |
|
