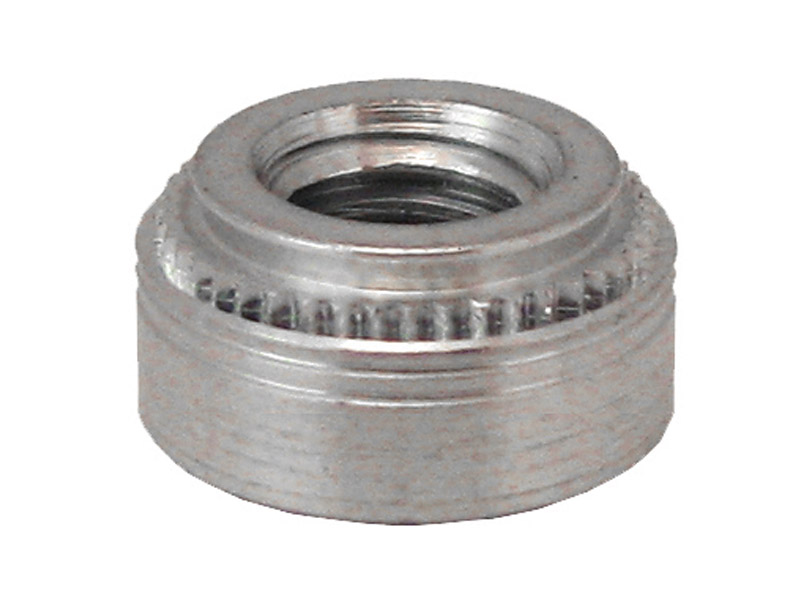

CLA-M3-1, Self-Clinching Nuts - Type CLA - Metric
| Specifications Datasheets Animations | ||
|---|---|---|
| Model Number | CLA-M3-1 |
|
| Description | Type CLA aluminum nuts are recommended for use in aluminum sheet with a hardness of HRB 50 or less on the Rockwell “B” scale. Unplated threads are sized to accept a basic go gauge after .00025” plating. |
|
| Company Name | Zygology | |
| Product Name | Self-Clinching Nuts - Type CLA - Metric | |

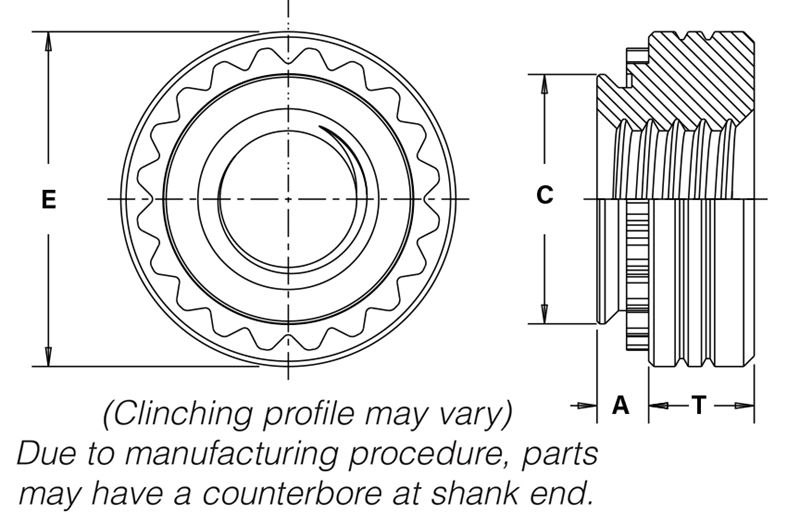

| A mm | 0.98 | |
| CAD Supplier | PennEngineering® (PEM®) | |
| E mm | 6.35 | |
| Fastener Material | Aluminum | |
| For Use in Sheet Hardness | HRB 50 / HB 82 or Less | |
| Hole Size in Sheet mm 2 | 4.75 | |
| Min. Dist Hole C/L to Edge mm | 5.6 | |
| Shank Code | 1 | |
| Standard Finish | None | |
| T mm | 2 | |
| Thickness mm | 1 | |
| Thread Code | M3 | |
| Thread Size | M3 x 0.5 | |
| Thread Specification | Internal, ASME B1.13M, 6H | |
| CAD URL 3D | https://catalogue.zygology.com/cadviewer/ThreeDim?sn=cla-m3-1 | |
|
