CFN-440-1ZI, Nylon Insert Self-Locking Fasteners - Types CFN - Unified
| Specifications Datasheets Animations | ||
|---|---|---|
| Model Number | CFN-440-1ZI |
|

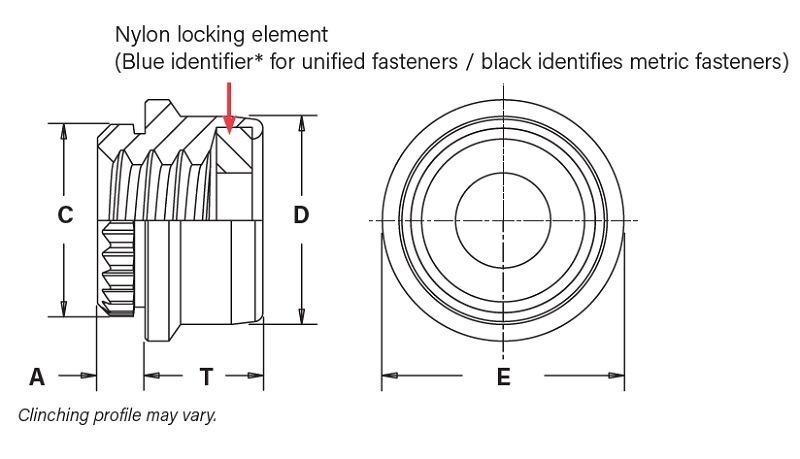

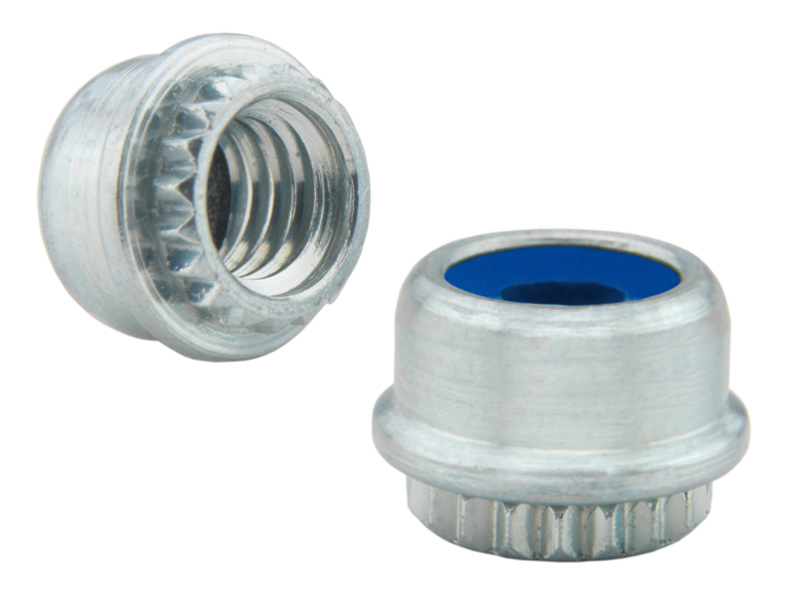

| Description | Type CFN broaching fasteners are available for thinner sheet, close-to-edge applications. The locking element provides prevailing torque to eliminate loosening of mating threaded hardware. | |
| Company Name | Zygology | |
| Product Name | Nylon Insert Self-Locking Fasteners - Types CFN - Unified | |
| A in | .040 | |
| C in | .162 | |
| CAD Supplier | PennEngineering® (PEM®) | |
| D in | .175 | |
| E in | .203 | |
| Fastener Material | Carbon Steel | |
| Fastener Materials Locking Element | Blue Nylon | |
| For Use in Sheet Hardness | HRB 60 / HB 107 or Less | |
| Hole Size in Sheet in 1 | .152 | |
| Max. Temperature Limit ºC | 120 | |
| Max. Temperature Limit ºF | 250 | |
| Min. Dist Hole C/L to Edge in | .115 | |
| Shank Code | 1 | |
| Standard Finish | Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless | |
| T in | .104 | |
| Thickness in | .043 | |
| Thread Code | 440 | |
| Thread Size | .112-40 (#4-40) | |
| Thread Specification | Internal, ANSI B1.1, 2B | |
| CAD URL 3D | https://catalogue.zygology.com/cadviewer/ThreeDim?sn=cfn-440-1zi | |
|
