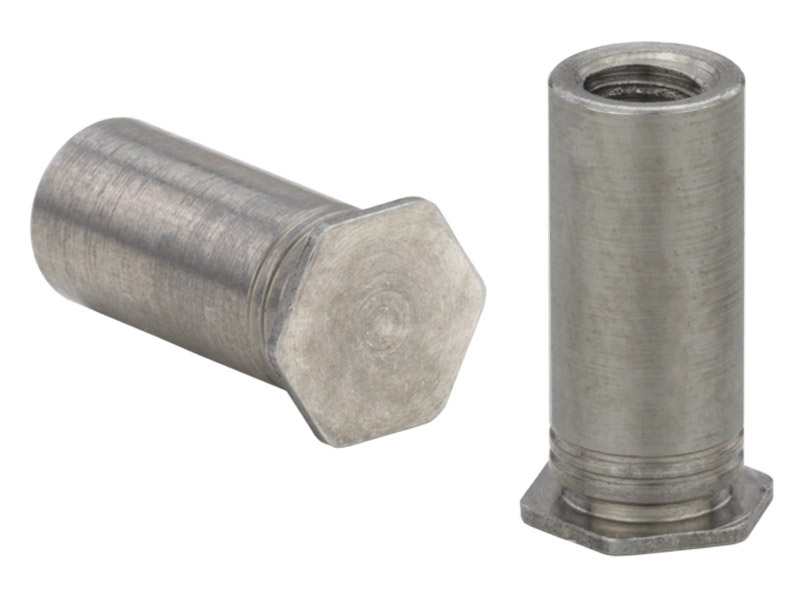

BSOS-3.5M3-14, Blind Threaded Standoffs - Types BSO, BSOA, BSOS - Metric
| Specifications Datasheets Animations | ||
|---|---|---|
| Model Number | BSOS-3.5M3-14 |
|
| Description | These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes - and become permanently mounted in the thin sheet. When blind-threaded types are used, outer sheet surfaces are not only flush, but c |
|
| Company Name | Zygology | |
| Product Name | Blind Threaded Standoffs - Types BSO, BSOA, BSOS - Metric | |
| CAD Supplier | PennEngineering® (PEM®) | |
| F mm | 6.50 | |
| Fastener Material | 300 Series Stainless Steel | |
| For Use in Sheet Hardness | HRB 70 / HB 125 or Less | |
| H mm | 6.4 | |
| Hole Size in Sheet mm 2 | 5.41 | |
| L mm | 14 | |
| Length Code | 14 | |
| Material Code | S | |
| Min. Dist Hole C/L to Edge mm | 6.8 | |
| Standard Finish | Passivated and/or tested per ASTM A380 | |
| Thickness mm | 1 | |
| Thread Code | 3.5M3 | |
| Thread Size | M3 x 0.5 | |
| Thread Specification | Internal, ANSI/ASME B1.13M, 6H | |
| CAD URL 3D | https://catalogue.zygology.com/cadviewer/ThreeDim?sn=bsos-3-5m3-14 | |
|
